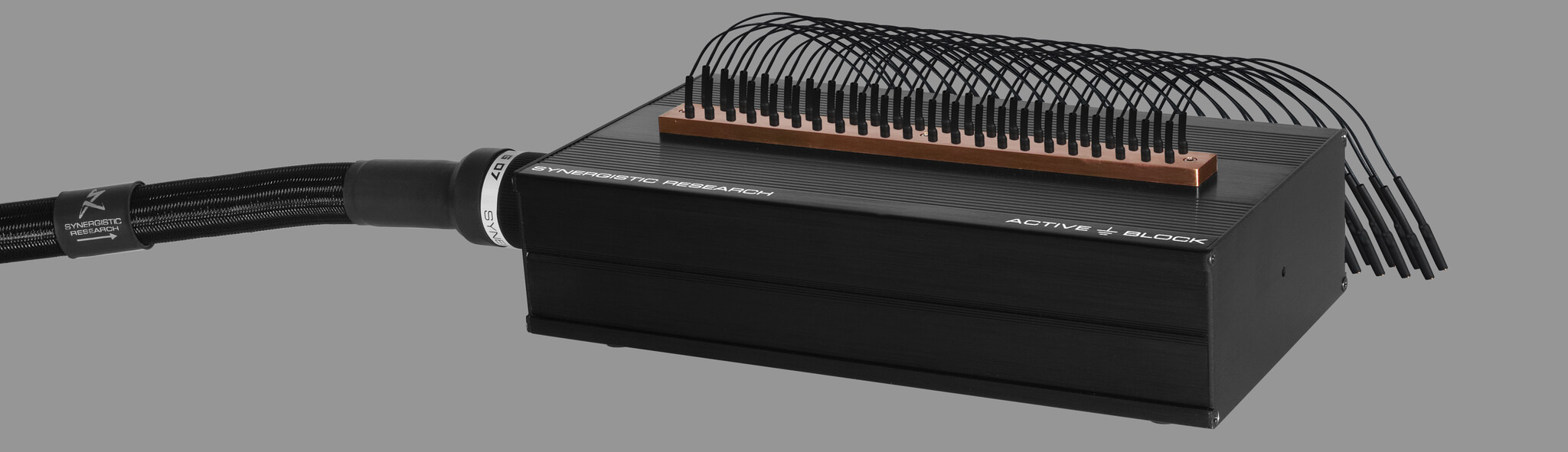

Active Ground Block

The heart of your system.

The New Active Ground Block takes the award winning UEF Ground Filter from our original SR Ground Block and adds an active ULF Field Generator, and on the SE model, a dedicated Active EM Cell as found in SR PowerCell line conditioners to supercharge the performance of every component in your system including Synergistic Research cables equipped with external grounding technology. Benefits include a noticeable increase in deep bass power and weight, a more holographic sound field, smoother high frequencies with greater extension and ‘air’, a more present and layered mid-range, increased tonal density with an apparent increase in resolution; it’s like going from a standard resolution Redbook file to Double DSD, the improvement is that dramatic. Nearly every aspect of system performance is transformed over the original; in fact, the difference between the new Active Ground Block and our original SR Ground Block is greater than the difference between the original Ground Block and no ground filter at all!

Learn more

How it works: It all starts with 44 Star Ground Points to reduce component to component ground inductance. That’s 44 ground connections to the original’s 18. You can ground your entire system including all components, a full loom of SR cable shields, and even equipment racks, computer hard drives, absolutely everything in your system can be grounded to one SR Active Ground Block. Filtration is handled by a UEF Ground Filter that’s 3 times the size of the original’s UEF Ground Filter and this translates into 3 times the performance of the passive ground filter alone. To this we add an Active ULF Field generator as found in our PowerCell 12 UEF which re-clocks high-frequency ground noise to the Earth’s Schumann resonance as well as noise generated inside connected components at the circuit level, so each connected component’s performance is fundamentally transformed at the source. And the Active Ground Filter is the only ground filter in the world to use such a filter mechanism for a performance unlike anything you’ve ever experienced. Stepping up to the Active Ground Block SE replaces the standard model’s passive Quantum Black Power Cord with a specially modified Atmosphere Level 2 Active power cord equipped with Galileo UEF Quantum Gold and Silver Filters that give you two distinctive sonic options to the overall sound of your system. With the included Galileo UEF filters you perfectly tailor the sound of the Active Ground Block SE to match your system, or leave the Galileo UEF Filters disconnected, the choice is yours. Lastly, the SE version has an Active EM Cell similar to the EM Cells found in our PowerCell 8 power conditioners to actively remove noise from ground for even blacker backgrounds, with improved dynamics, and finesse.

The term “ground” refers to a connection to the Earth, which acts as a reservoir of charge. The high-speed, SR Grounding Block provides a conductive path for this ground, separate from the normal current-carrying path of your components, which under certain conditions can add up to 10 dB of noise if poorly designed! The ground path with the least resistance is the best path to Earth, and there is no better ground path for your components than the SR Grounding Block.

Peripheral HUB

44 ports to perfection.

By cleaning up your system’s ground connection you hear a noticeable improvement in soundstage height, depth and width thanks to a lower noise floor. Soundstage scale is improved with richer tonal density especially at the edges of your sound field. Image outlines are brought into clearer focus while musicality and overall system refinement are greatly improved.

When using Atmosphere Interconnects and Speaker Cables Levels 2–4, the Grounding Block applies our UEF technology to the directly to the ground path’s shields lowering the noise floor and ramping up overall performance.

Applications

Synergistic Research Galileo UEF and Atmosphere Cables
Synergistic Research Tranquility Bases
Synergistic Research Atmospheres
Turntables – Standard or Small Spade Connect to Ground Post on Turntable
Phono-stage - Standard or Small Spade Connect to Ground Post
Digital to Analog Converters (DACs) – Connect to spare Digital Input, Output or Chassis Ground
Reel to Reel Tape - Connect to spare Analog Input, Output or Chassis Ground
Pre-Amplifiers – Connect to spare Analog Input, Output or Chassis Ground
Power Amplifiers – Connect to spare Analog Input, Output or Chassis Ground.
USB Devices – Connect to spare USB Input, Output or Chassis Ground
Audio Computers - 3.5mm Headphone Jack
Any Component with an active circuit inside – Connect to spare Input, Output or Chassis Ground

Active Ground Block Specifications:

US 120V MSRP
$1,995.00

Bundled with $499.00 UEF Black High Current AC Cable

INTL 230V MSRP
$2,295.00

Bundled with $499.00 UEF Black High Current AC Cable



      • Construction: Aircraft Aluminum
      • Dimensions: Height 3″ x Width 10.75″ x Depth 6″
      • Weight: 5.5 lbs.
      • Internal Active UEF
      • Connector Input:  1 each 15 amp IEC
      • 99.995% Pure Silver Ground Strap: 52 square centimeters
      • SR Quantum Capacitor
      • Point-to-point wiring
      • Silver Solder 4%
      • Hand Built Time: 2.5 hours
      • Quantum Tunneling: Standard Level 2
      • 5 Day Burn In: 2 Step Process

Voltage and current Rating:

      • Input rating US: 15amp/125v
      • Input Rating International (EU/AU/UK): 16amp/250v

Connector Input :

      • 44 each 2mm ground ports

UEF:

      • Graphene treatment throughout unit
      • Internal “Active” power supply for biasing EM Cells
      • 2nd generation Internal ULF (Ultra-low frequency) Generator to bias AC to the Earth’s Schumann Resonance for a dramatic drop in a system’s noise floor
      • 1 each SR Power Transformers
      • 1 each SR Quantum Capacitor in EM Cell power supply and ULF field generator

Connector Input:

      • 1 each  15 amp IEC
      • 1 each On/Off switch
      • 1 each SR Black 1.6A Fuse

99.995% Pure Silver

  • 52 square centimeters

Available connections for other SR products with SR Ground Plane Technology:

  • Synergistic Research Atmosphere: Acoustic Wave Generator
  • Synergistic Research FEQ: Frequency Equalizer
  • Synergistic Research Tranquility Base Products

Optional High-Def connectivity ground cables are available for the following applications:

  • Turntables: Connect to Ground Plug on Turntable
  • Digital to Analog Converters (DACs): Connect to spare Digital Input, Output or Chassis Ground
  • Pre-Amplifiers: Connect to spare Analog Input, Output or Chassis Ground
  • Power Amplifiers: Connect to spare Analog Input, Output or Chassis Ground.
  • USB Devices: Connect to spare USB Input, Output or Chassis Ground
  • Any Component with an active circuit inside: Connect to spare Input, Output or Chassis Ground

UEF Black 10awg power cable

Pure. Clean. Power.

UEF Black PowerCell power cable specifications:

3 each 10 awg. SR Copper:

  • Dielectric: (EPDM) Ethylene Propylene
  • Connector Input US: 1 each Synergistic Research C07 Pure Copper
  • Connector Input Int’l:1 each Synergistic Research C07 Pure Copper
  • Connector Output US: Synergistic Research C07 Pure Copper IEC 20 amp connectors
  • Connector Output Int’l:Synergistic Research C07 Pure Copper IEC 20 amp connectors

Build Notes:

  • UEF: UEF Technology Standard Level 2 - UEF coating with Graphene is applied to connectors and cabling significantly reducing the noise floor and allowing a purer signal to transfer with less grain providing more warmth and detail. The conductors also benefit from dampening effect that UEF provides.
  • Quantum Tunneling: Quantum Tunneling: Connections and cabling are treated with 1,000,000 volts of electricity at specific frequencies and pulse modulations, creating a canal in the conductor material and contact points at the molecular level that allows electrons to flow more freely.
  • 5 day Burn-in: 2 step process
  • Handmade in our California factory

Voltage and current Rating:

  • US: 30amp/125v
  • (EU/AU/UK): 20amp/250v
